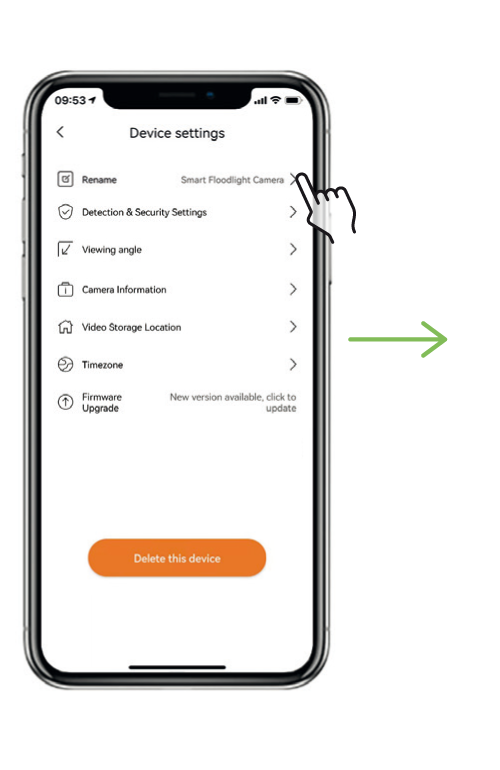

Rename your camera

You can change the camera name according to your preference
(not compulsory).

1 – Enter camera name.

2 – Press OK

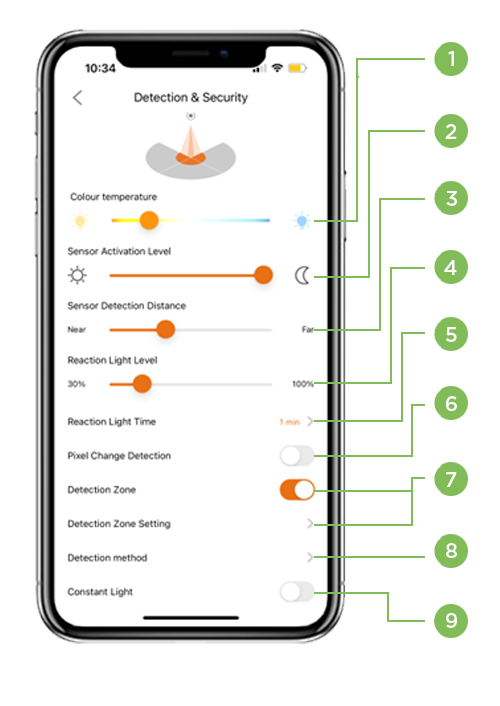

Detection set up

1 – Select the light temperature

2 – Adjust lux and dusk to dawn activation

3 – Adjust the detection distance

4 – Set brightness following detection/activation

5 – Adjust the time the light illuminates for after detection/activation (5 secs minimum to 15 minutes maximum)

6 – Pixel change detection : Activate this option to trigger the light ON from a Camera detection and not from the PIR sensor

7 – Detection Zone Activation and settings : a dedicated explanation is provided bellow

8 – Select the detection method based on 3 options : camera and PIR which reduce the detection number, camera only and camera or PIR to get the maximum detection

9 – Switching on constant light will cause the light to activate at the lux level set above (Sensor Activation Level) for the set time and at the set brightness

For more help, watch the video

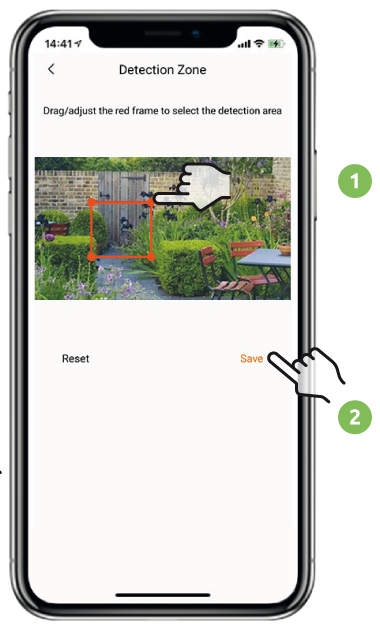

Detection zone

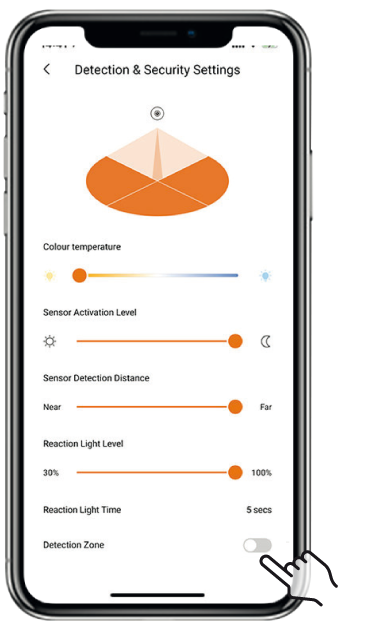

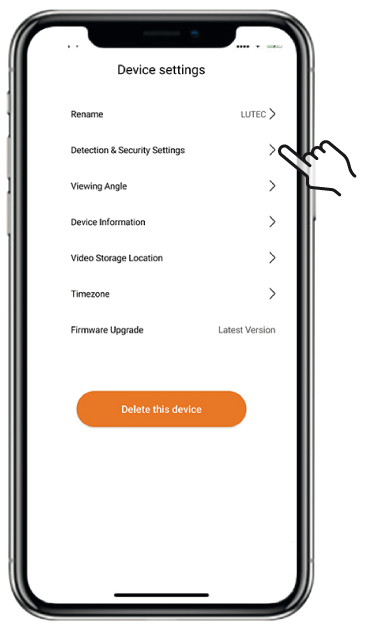

Activate detection zone

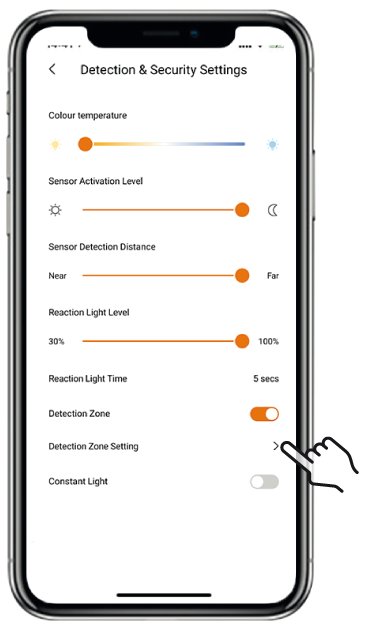

Click on Detection Zone Setting

1 – Adjust the zone to your need

2 – Save

The camera record will be activated only while a movement is detected within this zone.
If during the night the light switch ON triggered by the sensor detection then the record will also be activated what ever the zone setting

For more help, watch the video

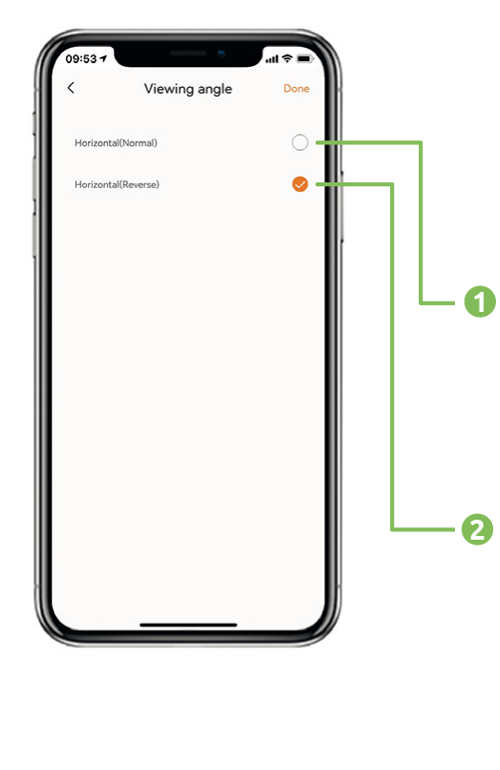

Screen orientation

You can reverse the screen orientation according to your preference

1 – Horizontal (Normal)

2 -Horizontal (Reverse)

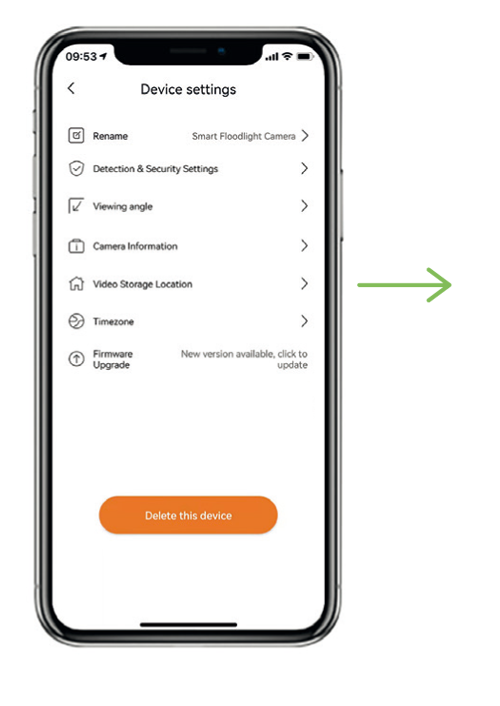

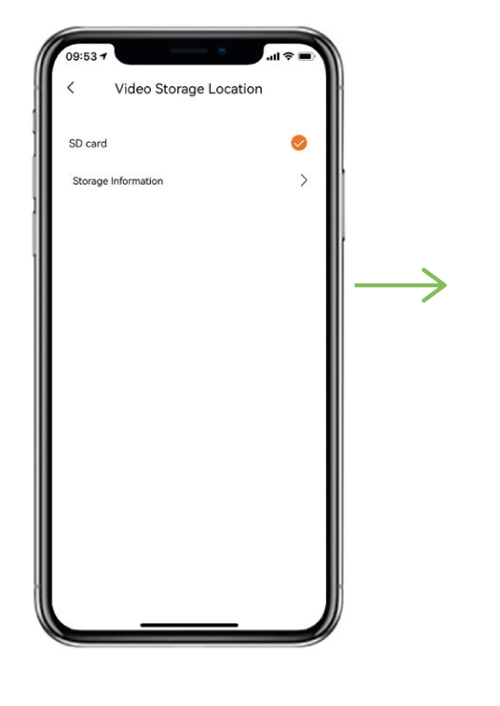

Video storage information

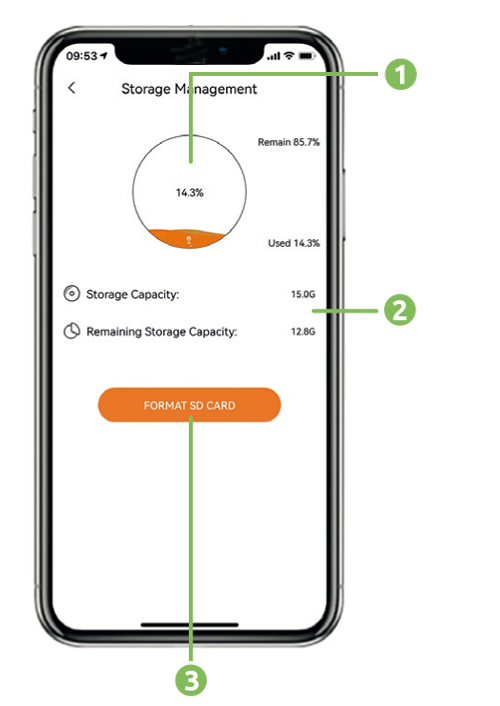

1 – Check your SD card storage capacity

2 – Storage status information

3 – You can directly format the SD card from the App. Do not forget to save content elsewhere in case you want to keep any recordings.
When the SD card is full, new recordings will automatically overwrite previous data

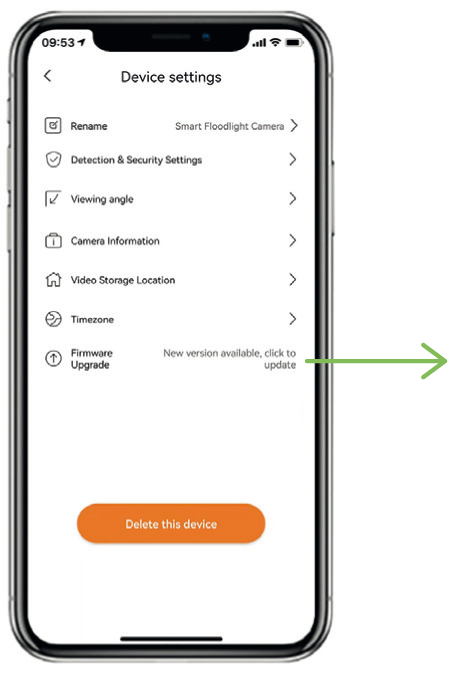

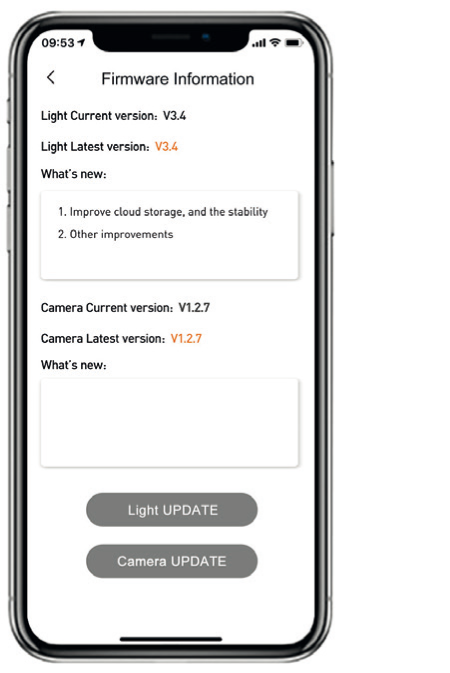

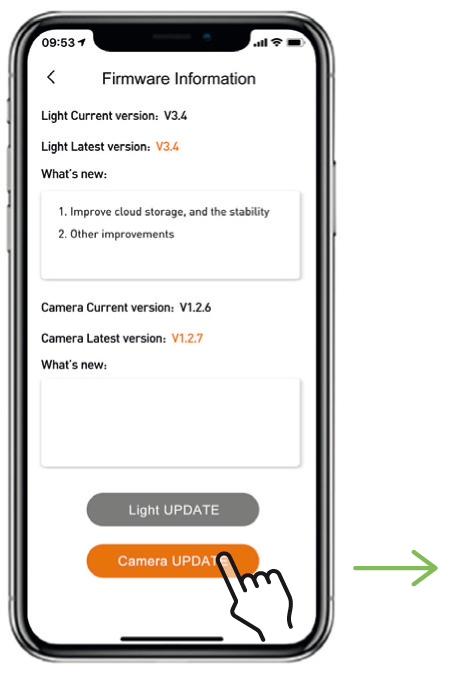

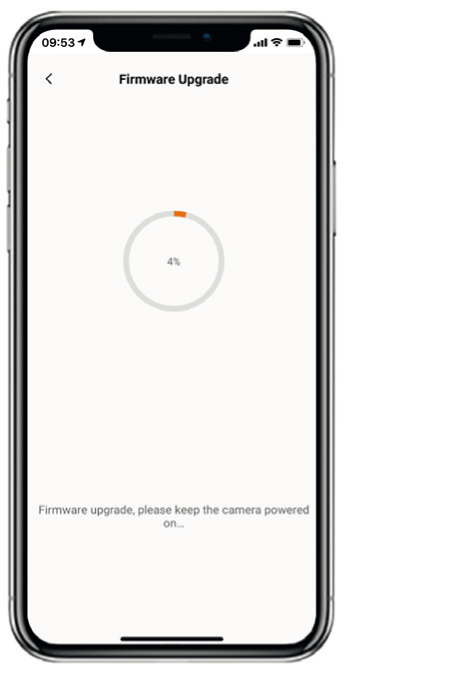

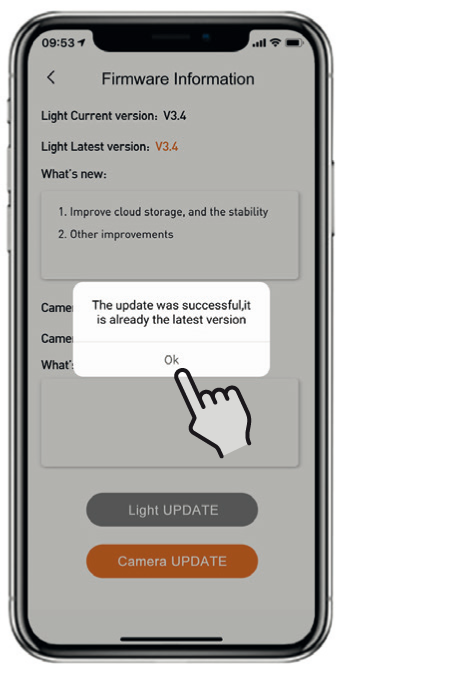

Firmware update

Are you having difficulties?
